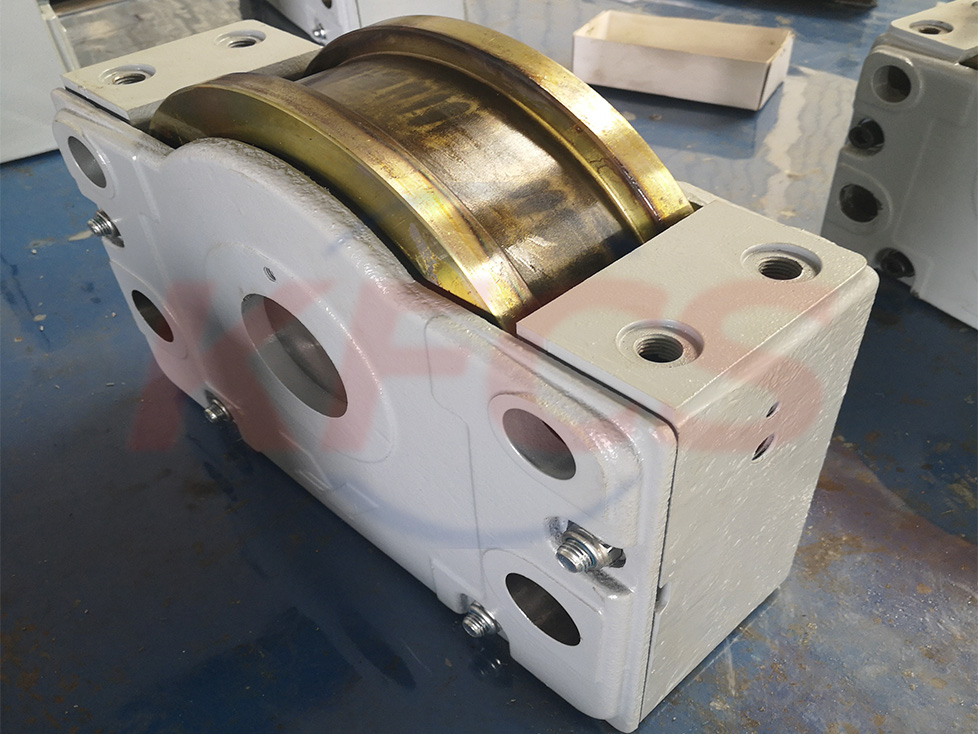

DRS Wheel Blocks
It is a multi-purpose compact Wheel Blocks with excellent performance, and the wheel load ranges from 2.75t to 40t. Scientific Series division (drs112 to drs500) helps to ensure that DRS wheel blocks match each application
| size | Maximum load capacity | walking wheel diameter | weight | size [mm] | ||||
| [ton] | [mm] | [kg] | a1 | b1 | b2 | c1 | h1 | |
| DRS 112 | 2.75 | 112 | 7.3 | 190 | 47 | 80 | 96 | 131 |
| DRS 125 | 5 | 125 | 9.9 | 220 | 60 | 80 | 98 | 147.5 |
| DRS 160 | 7 | 160 | 18.3 | 275 | 65 | 89 | 110 | 187 |
| DRS 200 | 10 | 200 | 35.7 | 340 | 65 | 101 | 130 | 238 |
| DRS 250 | 16 | 250 | 62 | 385 | 75 | 110 | 150 | 281 |
| DRS 315 | 22 | 315 | 117 | 470 | 90 | 130 | 180 | 349.5 |
| DRS 400 | 30 | 400 | 201 | 580 | 110 | 155 | 210 | 440 |
| DRS 500 | 40 | 500 | 352 | 700 | 110 | 170 | 240 | 566 |
In order to meet the needs of customers, we have a variety of walking wheel box designs for you to choose from. We have finished all surfaces of the wheel block to ensure a good connection with the customer's design.
The modular design of DEMAG parallel axis and direct axis reduction motor is matched with this Wheel Blocks to perfectly complete the walking application of independent walking drive or centralized drive.
