DRS 200 Crane Traveling Wheel Block System

DRS 200 Crane Traveling Wheel Block System

18-Jun, 2024 1960 Hits

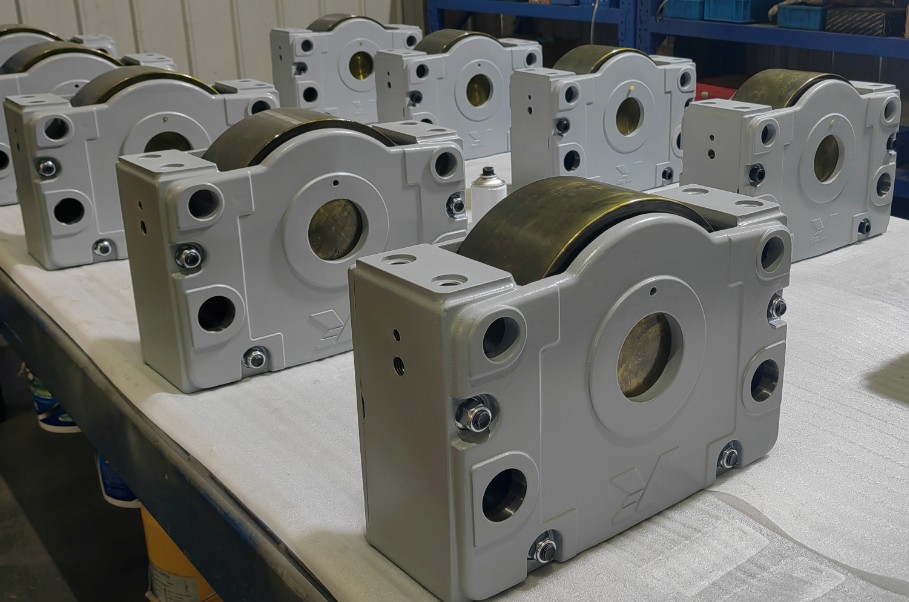

DRS200 crane wheel blocks as a key component of the crane travel mechanism, the wheel set is used to support the load of the crane and to make the crane run repeatedly on the track.

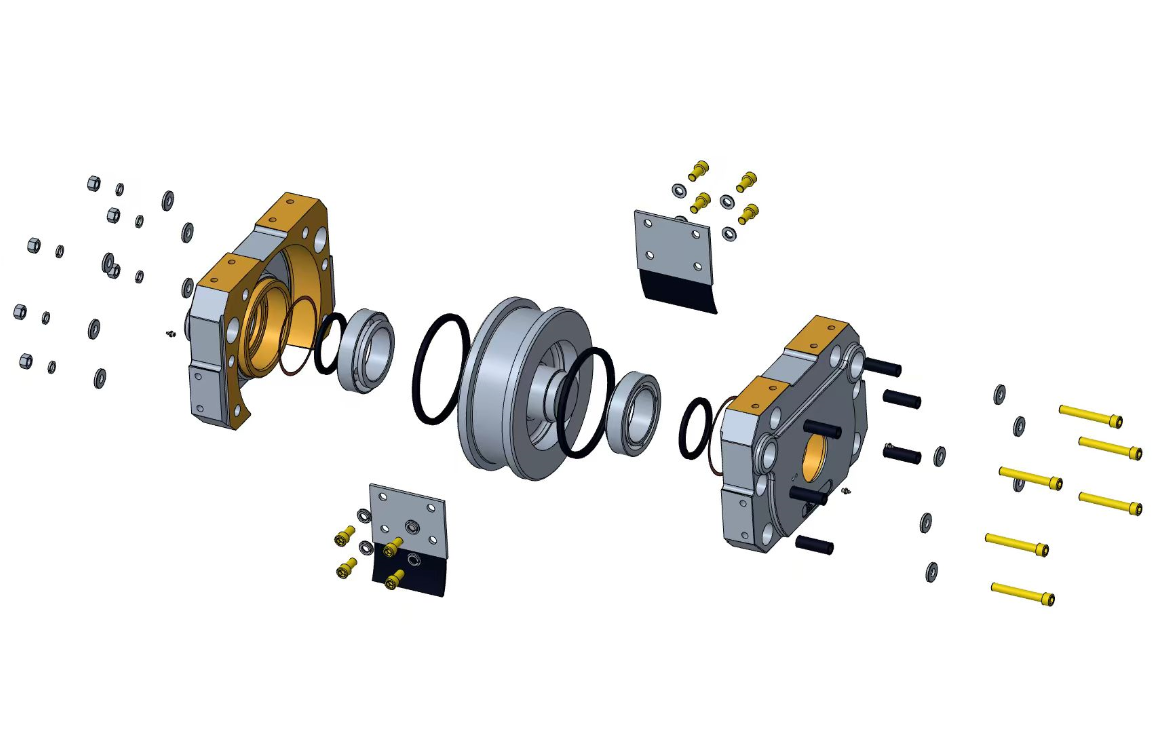

DRS200 crane traveling wheel block system as a key component of the crane travel mechanism, the wheel set is used to support the load of the crane and to make the crane run repeatedly on the track. It is mainly composed of wheels and shafts, bearings and bearing housings. Its quality is very important to the crane. DRS wheel blocks are the most widely used and come in a wide range of diameters to meet your needs. we can supply High Quality DRS 200 wheel blocks!

Characteristics of DRS 200 Wheel Block System

• 4 variants for connection to customer's superstructure (Top, pin, end and side connection)

• Hardened running surfaces with coating or with polyurethane binding.

• Compact design, light weight but have a long service life

• Efficient work with low noise


Capacity

(ton)

Weight

(kg)

Splined hub profile

DIN 5480

Bear type

DRS 112

2.75

10

W30x125x30°x22x7H

6207-2Z

DRS 125

5

15

W35x2x30°x16x7H

6211-2Z

DRS 160

7

26.5

W45x2x30°x21x7H

6215-2Z

DRS 200

10

41.5

W50x2x30°x24x7H

6218-2Z

DRS 200 Crane Wheel Blocks are designed as a perfect solution for a wide variety of applications. Wide used for sorts of cranes and trolleys in heavy industry and warehouse, for example, stockers, bridge cranes and so on.

Interested in DRS 200 Crane Traveling Wheel Block System? Contact KFCS Today!
