Chain Load Rotator Machine for Casting Containers

In the modern casting industry, the turning, positioning and handling of large casting containers such as sand boxes, casting molds and pouring ladles have become critical factors affecting production efficiency and operational safety. As a high efficiency automatic turning equipment, the chain load rotator machine is gradually replacing manual operation thanks to its outstanding stability, heavy load capacity and intelligent control system.

What is a Chain Load Rotator Machine for Casting Containers?

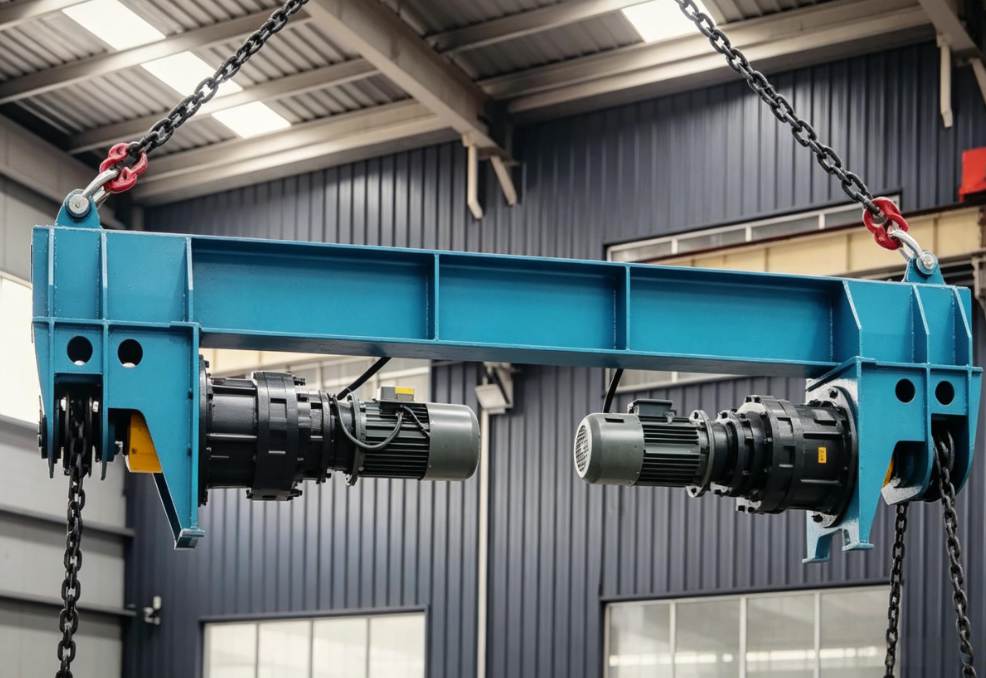

The chain load rotator machine is an automatic device that realizes heavy workpiece turning through chains drive system. It is mainly applied to 0° - 360° turning, positioning and handling of sand boxes, castings and molds during casting production.

The core structure consists of:

• Drive system (motor + reducer)

• High strength chains and pulley blocks

• Load-bearing cross beam

• PLC intelligent control system

• Safety protection system (limit switch, overload protection, emergency stop, etc.)

Technical Advantages

• Adopts high strength chains and double chain synchronous structure, capable of stably supporting large tonnage casting containers.

• Smooth chain transmission with minimal impact, combined with the reducer system to achieve low-vibration operation.

• Supports arbitrary angle turning from 0° to 360° and precise positioning, meeting requirements for welding, inspection, assembly and other processes.

• Equipped with multiple safety mechanisms including overload protection, limit control and emergency stop devices to effectively reduce operational risks.

• Supports non-standard customized design according to the size, weight and working conditions of various casting containers, adapting to diverse production environments.

Key Factors for Selecting Chain Load Rotator Machine

Load Capacity and Workpiece Characteristics

It is necessary to confirm the rated load and workpiece attributes. Besides maximum weight, the size, shape and center of gravity of workpieces shall also be analyzed. For eccentric loads and irregular casting containers, double chain synchronous drive is recommended, with a 20% - 30% safety margin reserved to ensure long-term stable operation and prevent chain fatigue.

Turning Angle and Process Requirements

Different production processes require various turning angles, such as 90°, 180° and continuous 360° rotation. For welding, inspection and assembly procedures, precise arbitrary angle positioning is usually required. Equipment with multi-angle setting and accurate stopping function shall be selected according to actual working conditions.

Drive System and Chain Structure

The integrated motor reducer structure ensures stable and reliable operation. Servo drive is optional for upgraded higher precision control. Chains shall be made of high strength alloy material, and double chain synchronous structure is preferred for enhanced load capacity and operational stability.

Installation Environment and Space Constraints

Equipment selection must be based on on-site installation conditions. Workshop height and turning radius shall be evaluated, with sufficient space reserved for turning movement to avoid operational interference caused by space limitation.

Integration with Existing Equipment

The turning device does not operate independently. It can be integrated with overhead cranes, production lines and control systems to realize overall automated operation.

Practical Application: The Core Value of Heavy Load Rotator Machine

Casting workshops: Sand box turning, sand cleaning, mold stripping, casting inspection and post processing.

Heavy manufacturing: Positioning and turning of steel castings, auxiliary welding of large workpieces.

Lost foam casting: Efficient separation of sand molds and castings.

If you are looking for reliable and customizable turning solutions, please contact our engineering team. We will provide tailor-made technical solutions to help your enterprise achieve safe and efficient production.
