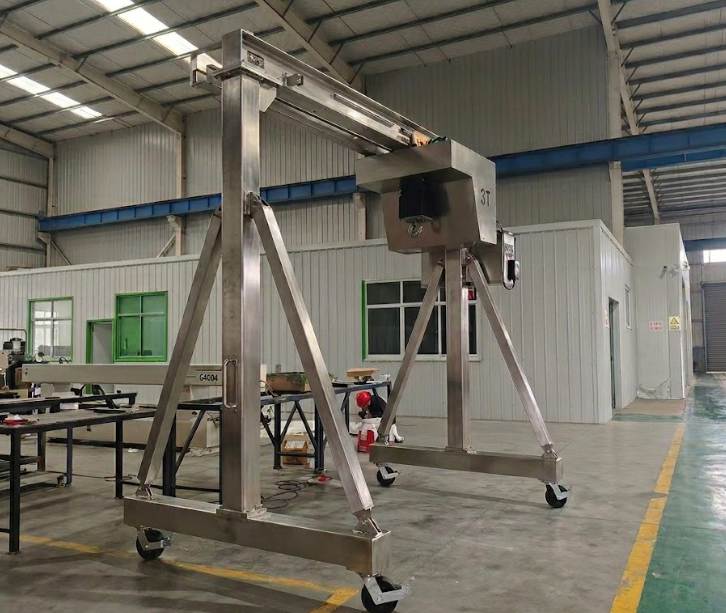

Stainless Steel Moveable Gantry Crane

The stainless steel moveable gantry crane is constructed from 304 or 316 stainless steel and features low particle emission design, corrosion-resistant surface treatment and cleanroom grade lifting system, enabling safe and low-contamination material handling and equipment lifting in ISO Class 5 - 8 cleanroom environments.

Stable and Lightweight Structural Design

Stainless Steel Main Beam: High strength welded or modular assembly design ensures load-bearing stability.

Movable Support Legs: Equipped with polyurethane swivel casters with locking devices, enabling flexible movement and secure positioning.

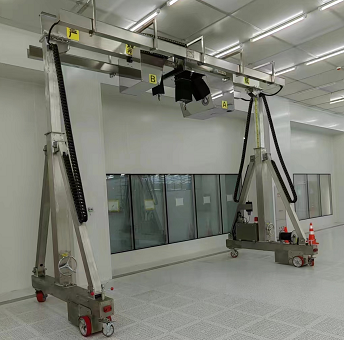

Adjustable Height Design: Step-by-step height adjustment to meet different workstation and lifting requirements.

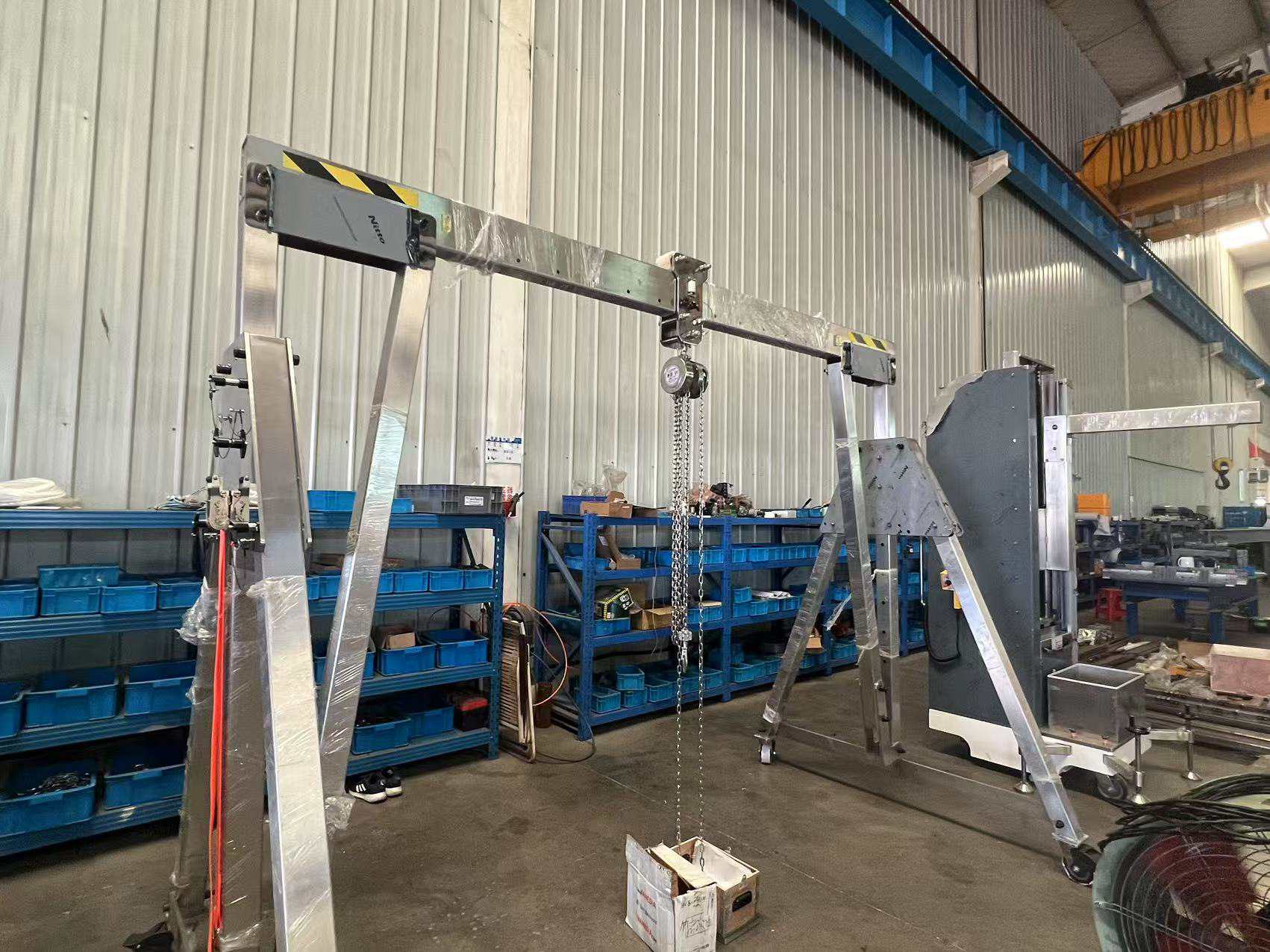

Lifting Hoist System: Compatible with cleanroom electric chain hoists, stainless steel manual chain hoists, or belt hoist systems.

The overall frame structure ensures both stability and strength while achieving lightweight construction and easy operation.

Features of Stainless Steel Moveable Gantry Crane

Strong corrosion resistance: The stainless steel material is corrosion resistant and can withstand chemicals and corrosive substances in clean rooms.

Dust-proof and anti-static: The surface is smooth, burr-free and rust-free, which can effectively avoid dust, bacteria and other pollutants generated during the work process, and has anti-static characteristics, which will not affect the responsible equipment.

Stable quality and firm structure: Made of high-quality materials, it has the characteristics of stable quality, durability and firm structure, which can ensure long-term and stable use effects.

High efficiency, energy saving and environmental protection: It can improve work efficiency, reduce the waste of manpower and material resources, and at the same time save energy and protect the environment, meeting the requirements of clean rooms.

Multi-Industry Cleanroom Lifting Applications

• Semiconductor and Wafer Manufacturing: Used for wafer equipment installation, precision component lifting and cleanroom maintenance operations.

• Pharmaceutical and Biotechnology Industry: Suitable for equipment maintenance in sterile production rooms, reactor vessel lifting and material transfer in clean production lines.

• Food Industry: Used for equipment handling and maintenance within hygienic-grade production areas.

• Precision Electronics Manufacturing: Applied for safe lifting of high-value electronic components and automated equipment handling.

Optional Configurations & Customization Options

According to different production conditions and application requirements, various customization options are available:

• Rated load capacity: 100kg – 3000kg

• Span and lifting height customization

• Adjustable height range customization

• 304 or 316L stainless steel material options

• Electric or manual movement

• Anti-static caster configuration

• Optional lifting hoists

As a professional manufacturer of cleanroom lifting equipment, KFCS can provide customized stainless steel mobile gantry cranes for customers. If you are looking for moveable crane for cleanroom workshops, feel free to contact our engineering team for professional technical consultation and product quotations.
