Load Turning Device

Load turning devices for KFCS RV manual

14-Aug, 2019 1656 Hits

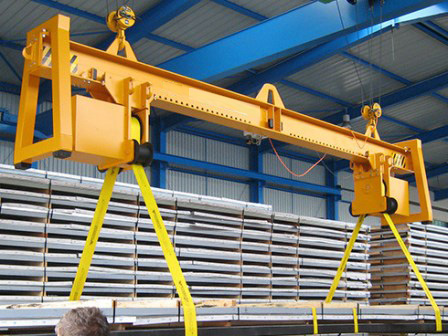

load turning units allow 360° rotation of goods to assist with the assembly or production of various items

Product description:

Product model: KFCS - RV manual,

Condole belt spacing cannot adjust, weight: 1000 to 30000 kg.

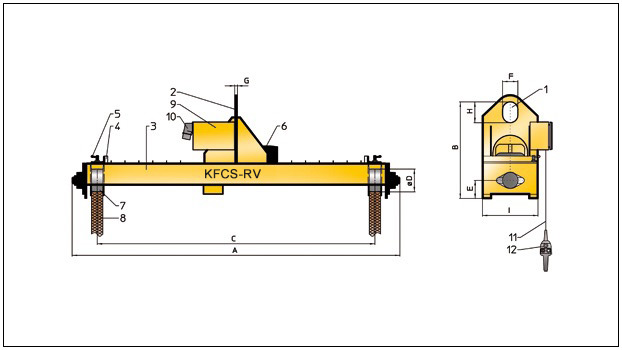

The component of product:

1. Hang the eye

2. The suspension

3. The crane beam

Adjust the gear 4.

5. Spring locking device

6. The drive motors

The driving wheels of the 7.

8. The chain or strap

9. Control box

10. CEE 5 hole socket

11. The line of control

12. Flashlight door

Scope of supply:

Basic configuration are applied to crane hook hanging eyes, belt line, appliance with switch (left/right and stop), 400 v / 50 hz 3 phase electric, 48 v control voltage, socket with CEE 5 hole.

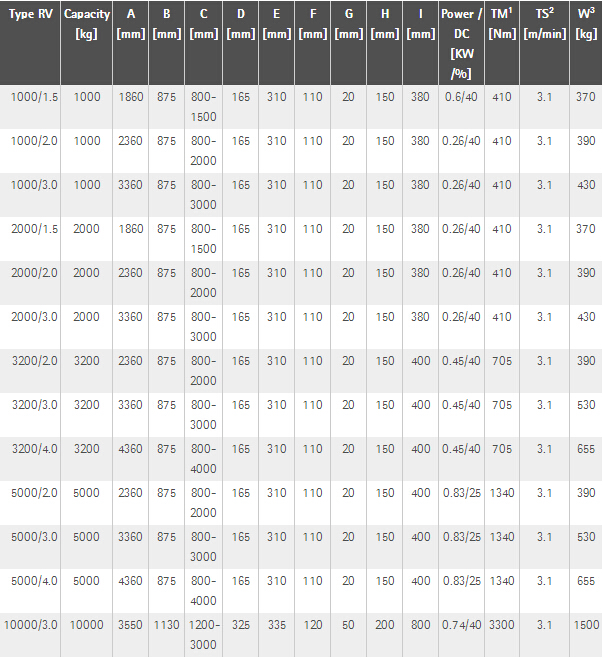

Selection table:

TM - turning torque, TS - turning speed, W - gravity (do not contain condole belt/chain)
load turning

Interested in Load turning devices for KFCS RV manual? Contact KFCS Today!
